Transmotec

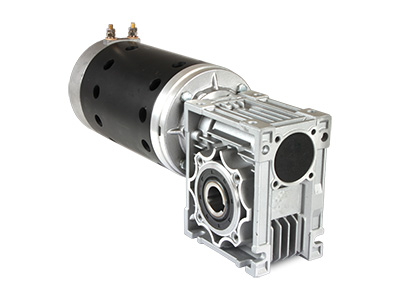

WHD123224-12-40
WHD123224-12-40
≥ 1 pcs
15 427 kr
≥ 2 pcs
13 683 kr
≥ 5 pcs
12 334 kr
≥ 10 pcs
7 828 kr
≥ 25 pcs

In stock

  • Specifikationer
  • Anpassningar

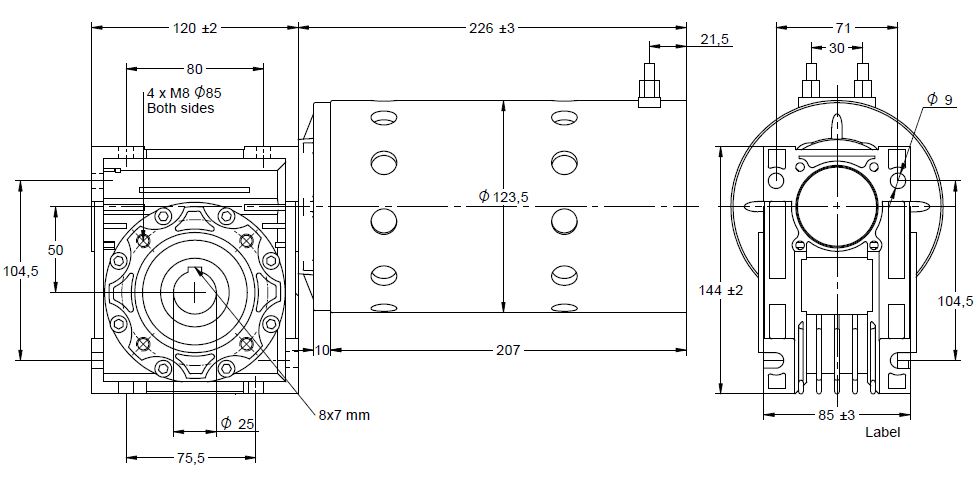

  • Ritning
  • Datablad och filer
Voltage
12 V
Diameter
123,5 mm
Mechanical power
421 W
Profile
Circular
Length
344 mm
Nominal speed
50 rpm
Nominal torque
41 Nm
Current at maximum load
262 A
Weight
13,13 kg
SKU
141188013
Some of the possible customizations:
Shaft length
Shaft profile
Connectors
Cabling
Gear & pinion material
Operating temperature
Brake & encoder
For any inquiries regarding customizations, please contact us at:
Katalog
Datablad
Ritning
3D CAD (.stp)
